| THE PICTURES BELOW WERE TAKEN AT A JOB SITE THAT WAS INSTALLED IN NOVEMBER OF 2009. THE JOB SITE IS UNIVERSITY OF TEXES MEDICAL BRANCH/TEXAS DEPARTMENT OF CRIMINAL JUSTICE IN GALVESTON,TEXAS. |

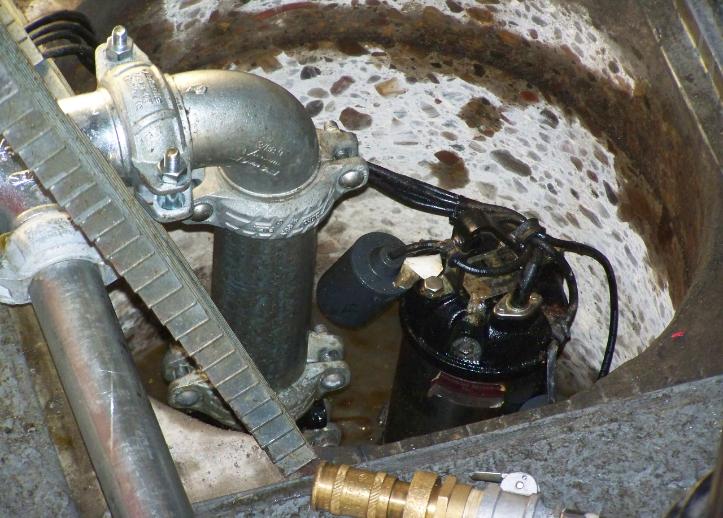

SUMP PIT

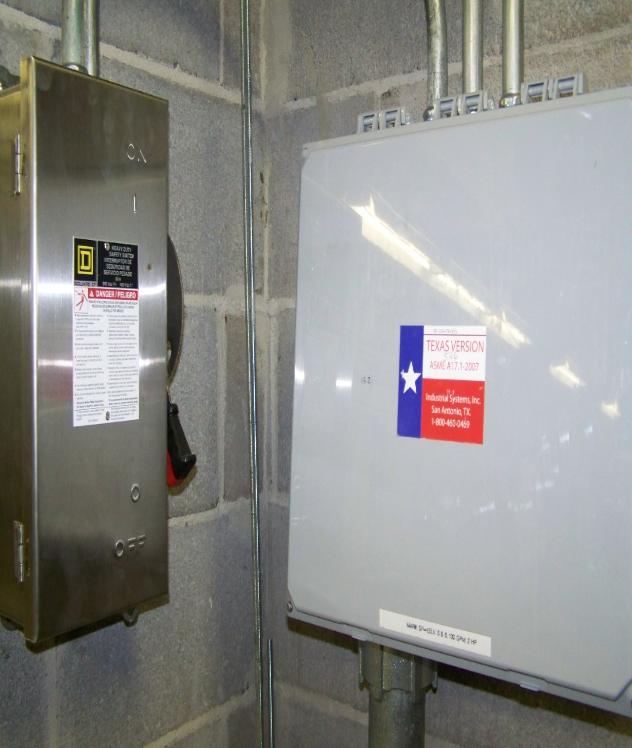

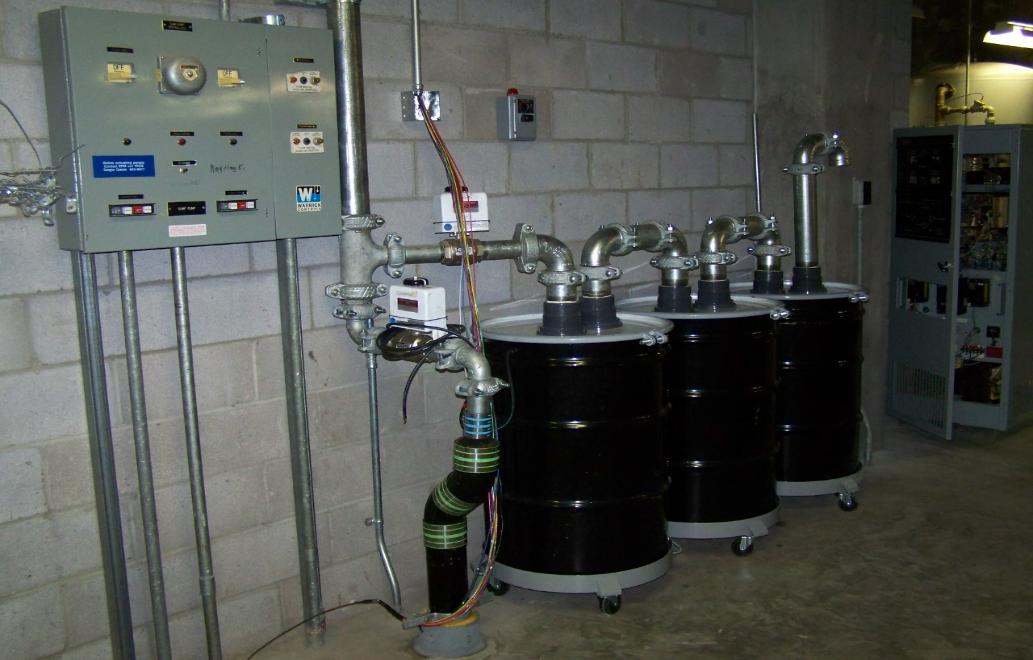

CONTROL PANEL
MOTORIZED VALVES
XT-HIGH WATER ALARM

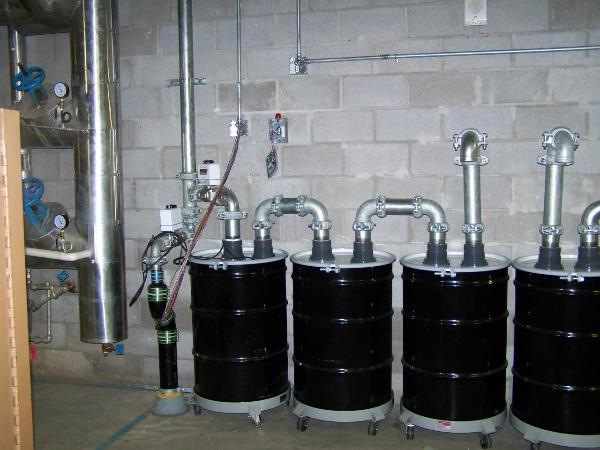

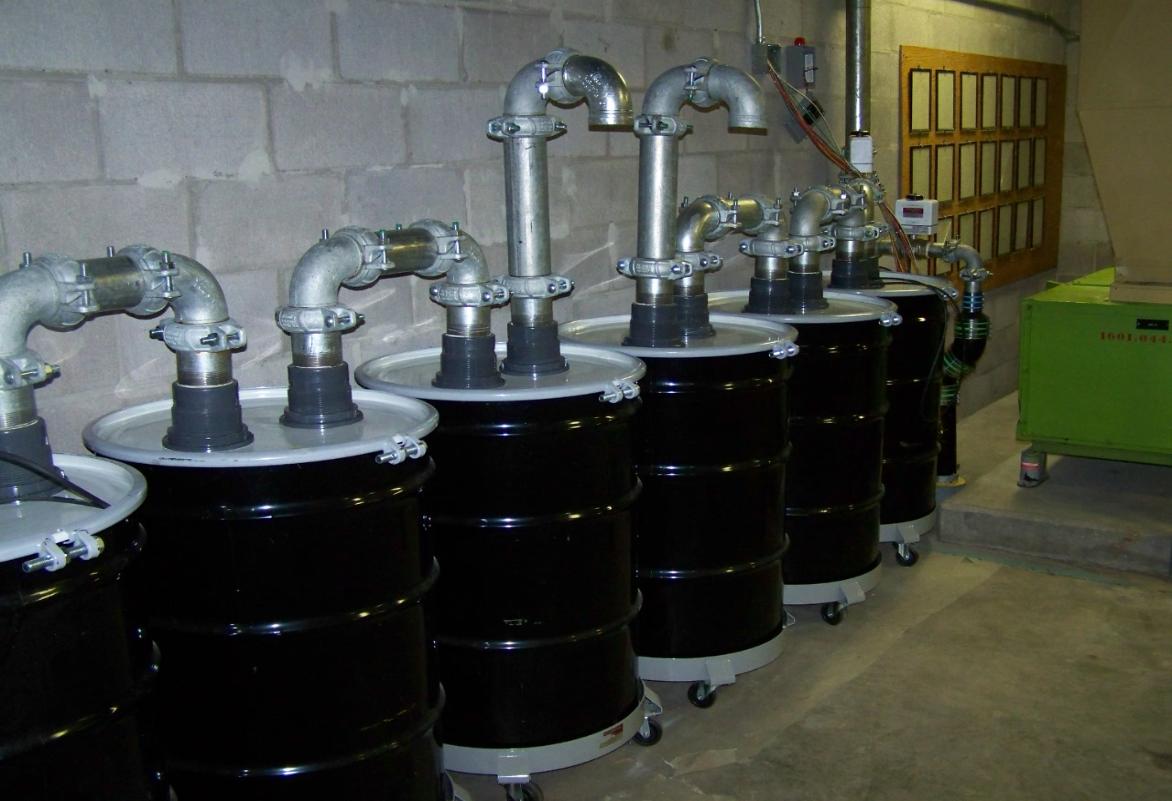

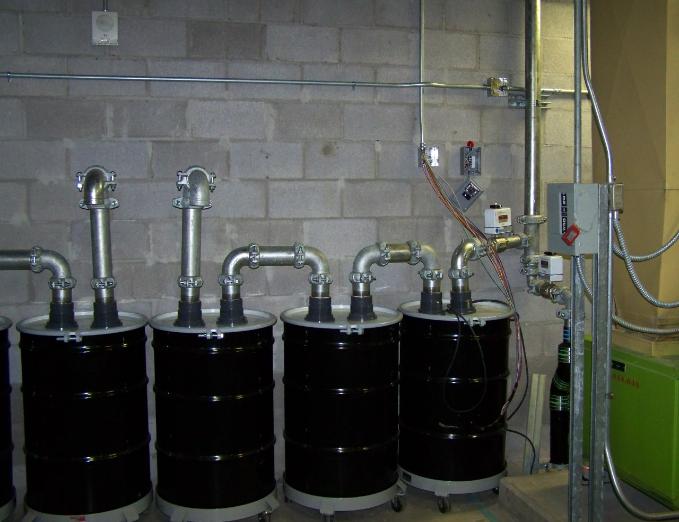

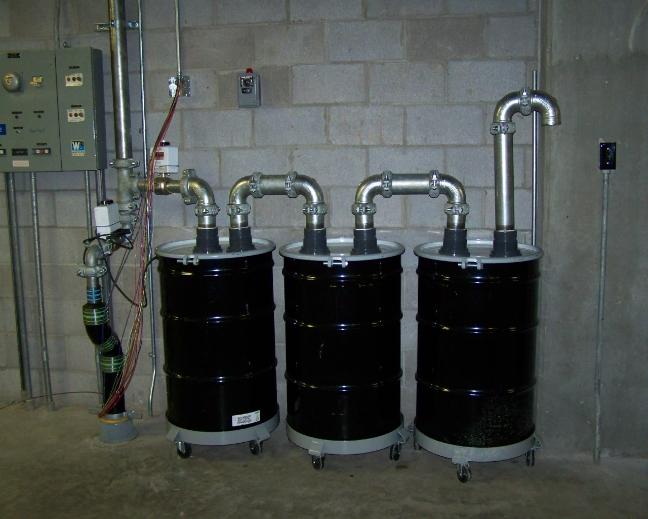

55 GALLON OIL CONTAMINATION DRUMS
VALVES

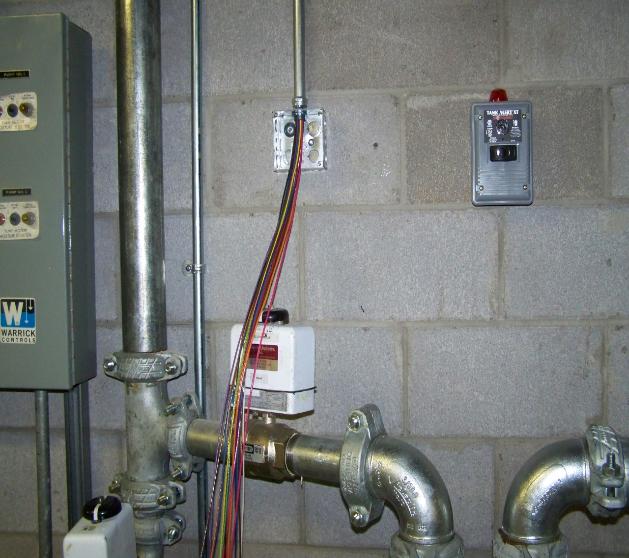

XT-HIGH WATER ALARM PANEL
| BELOW YOU WILL SEE SEVERAL PICTURES OF A PROJECT THAT REQUIRED THE VALVES TO BE INSTALLED ON THE FLOOR OF THE ELEVATOR SHAFT. IN ORDER TO INSTALL THE VALVES IN THIS LOCATION IT WAS IMPORTANT TO PROVIDE A MEANS OF PROTECTING THE MOTORIZED VALVES FROM WATER DAMAGE. IN THIS SITUATION WE PROVIDED A NEMA-6P SUBMERSIBLE BOX. INSIDE THE BOX IS WHERE THE VALVES ARE MOUNTED PROTECTING THEM FROM WATER OR ANY OTHER FLUIDS. |

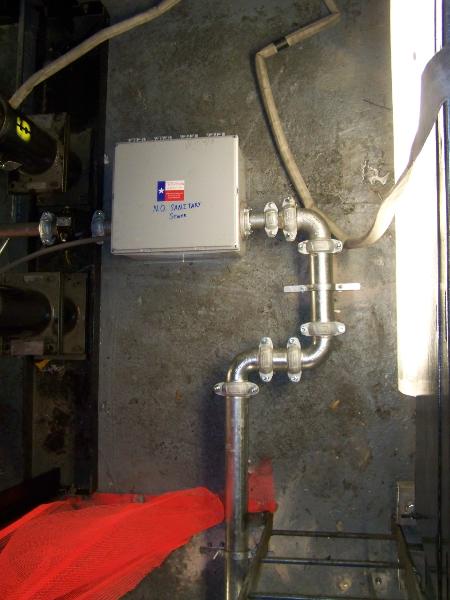

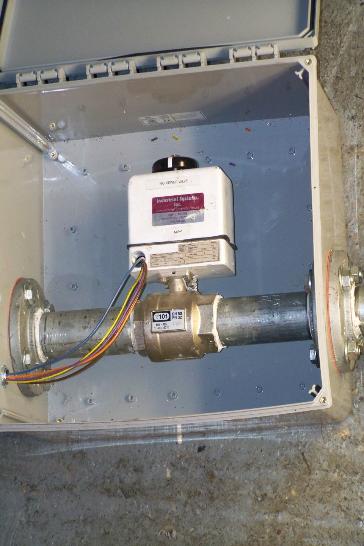

NEMA-6P BOX WITH
VAVLES MOUNTED INSIDE
LOCATED ON THE FLOOR
OF THE ELEVATOR SHAFT
VAVLES MOUNTED INSIDE
LOCATED ON THE FLOOR
OF THE ELEVATOR SHAFT
VALVE BOX
ELEVATOR
BUFFER
BUFFER
SUMP PIT

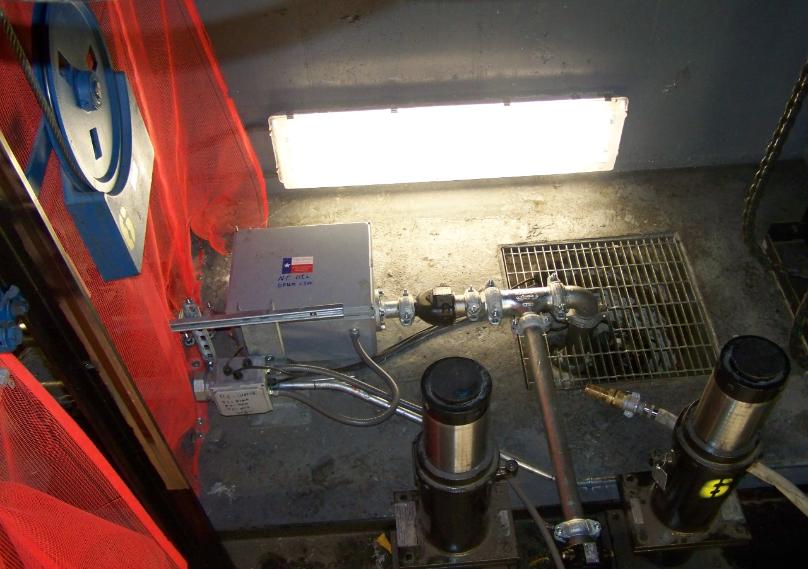

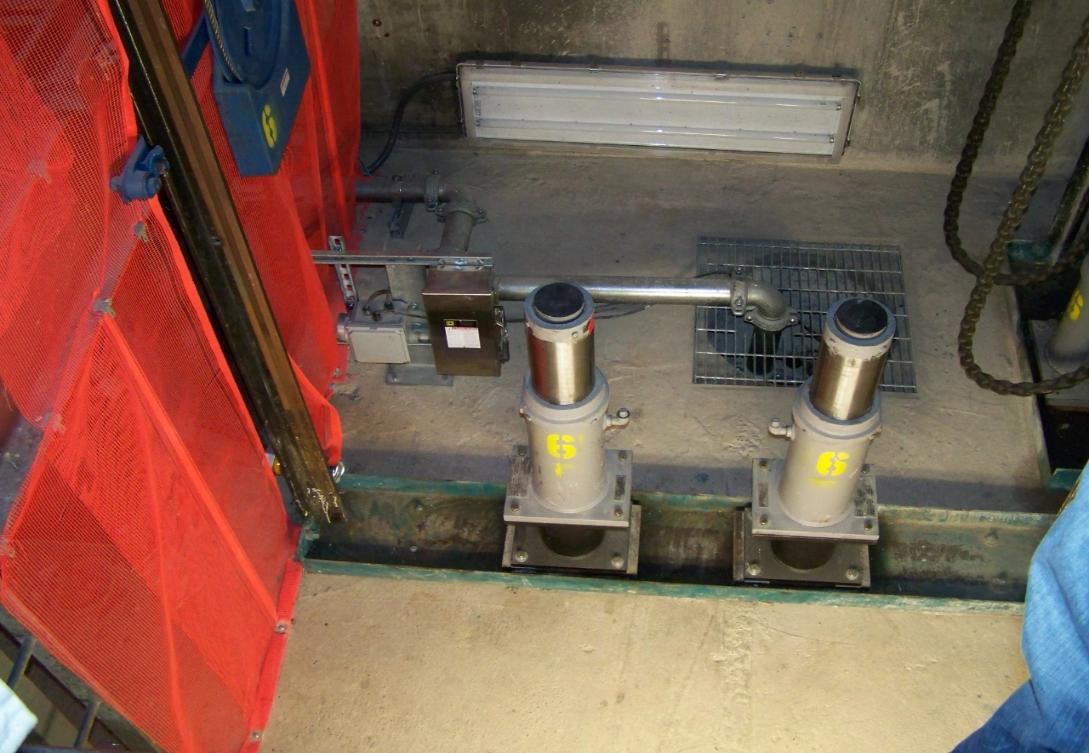

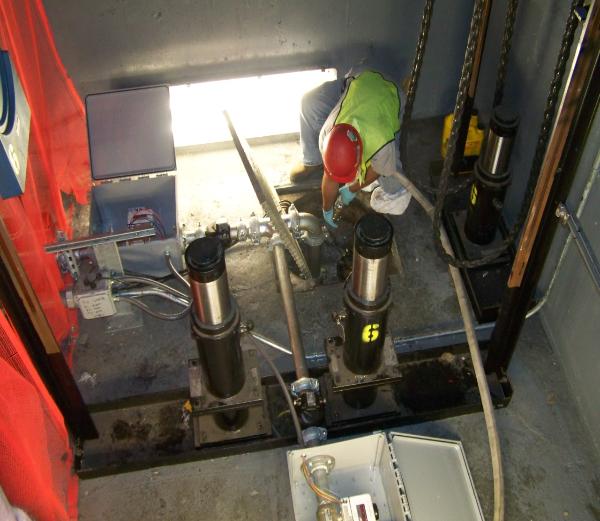

VALVE MOUNTED IN THE
NEMA-6P BOX AT THE BOTTOM
OF THE ELEVATOR SHAFT
NEMA-6P BOX AT THE BOTTOM
OF THE ELEVATOR SHAFT

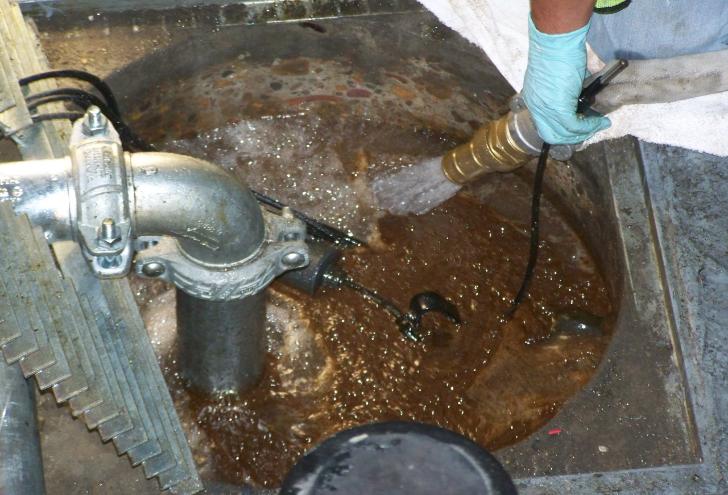

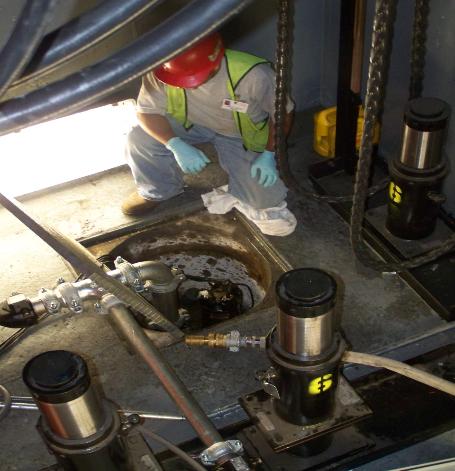

A TESTING PROCEDURE WAS CONDUCTED BY THE
UNIVERSITY OF TEXAS . BELOW YOU WILL SEE THE
PUMP IN THE PIT DURING THE TEST. THE SYSTEM PAST
THE TEST AND WAS APPROVED BY THE UNIVERSITY.
UNIVERSITY OF TEXAS . BELOW YOU WILL SEE THE
PUMP IN THE PIT DURING THE TEST. THE SYSTEM PAST
THE TEST AND WAS APPROVED BY THE UNIVERSITY.

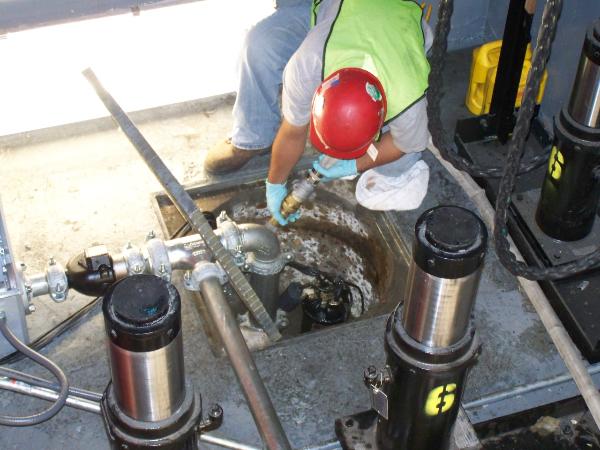

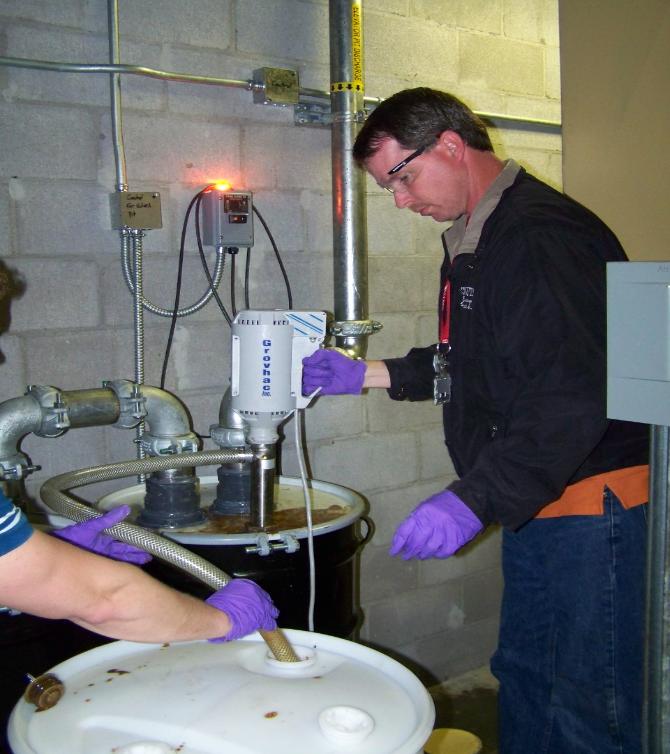

TEST TIME
THE HIGH FLUID ALARM
BECON HAS BEEN ACTIVATED
BY HIGH LEVEL OF FLUID IN
THE OILCONTAMINATION DRUM

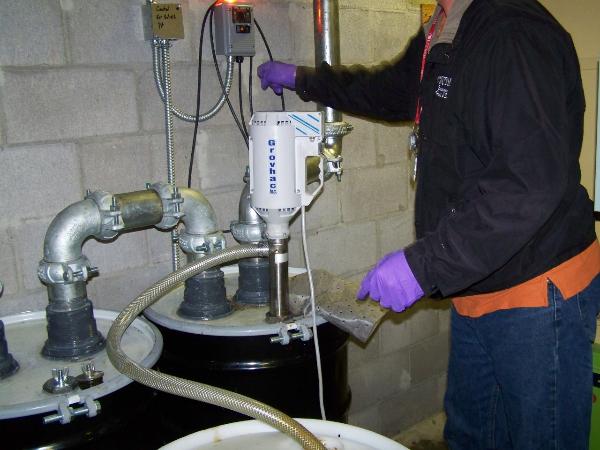

BECON HAS BEEN ACTIVATED
BY HIGH LEVEL OF FLUID IN
THE OILCONTAMINATION DRUM
MORE TEST
