| Electrode Steam Humidifiers Designed for internal use in specialty air handling equipment |
| NORTEC MES Series humidifiers resolve demanding OEM needs. |
| AxAir NORTEC is a world leader in state-of-the-art humidification technology. Our focus is concentrated exclusively on designing and building better humidification systems. MES Electrode Steam Humidifiers employ the most advanced technology yet devised to reliably maintain interior environments at critical humidity levels. They provide the best of both worlds — top quality design and construction, with economy of installation and operation. Every NORTEC MES model has been engineered to meet the highest standards of cost-effective, efficient performance. They are designed for ease of installation, adaptability, simplicity of operation, ease of maintenance and servicing, energy efficiency, cleanliness and long-term reliability. computer rooms hi-tech telecommunications clean rooms laboratories |

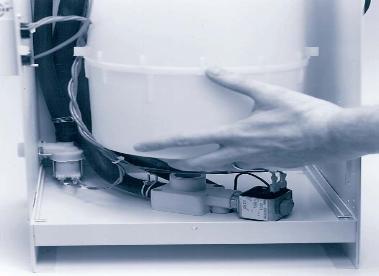

| Precise control MES installations handle the most demanding challenges. Each unit is controlled by its own integral electronics. Just preset your humidification requirements. Economy Unlike older systems that are often difficult and costly to maintain, the MES electrode steam system produces pure, uncontaminated moisture to protect sensitive equipment and the people using it. There are no heating elements to get coated with mineral deposits and sludge. Any water-borne impurities are removed at the electrodes and deposited in a replaceable cylinder where they are periodically flushed out through the automatic cylinder drain. Solid mineral scale sinks to the bottom of the cylinder which, when filled with residue, is easily discarded and replaced. Installation Flexibility MES Series humidifiers offer unprecedented installation flexibility. They can be configured for both small and large systems and are ideal in computer room and specialty air handling systems. Steam distribution is easily accomplished through the air handler duct system. technology System Features Disposable steam cylinder Compact size Two year limited warranty Patented auto-adaptive control Automatic drain water tempering C_UL-US Recognized On/off or modulation control Primary voltage connections on models H and I Optional RS485 2-wire Modbus RTU Bus Building Automation System Interface Operation run time in hours with remote reset Steam output displayed in lbs/hr Enable/Disable humidifier End of cylinder life indication Humidifier alarm/System faults status Electrode current displayed in amps Capacity output adjustment Operational hour counter Cylinder drain flushing sequence Electrode Steam Clean and hygenic steam Energy efficient Adjustable output Adjusts to varying water conditions Easily installed in air handlers Wide range of models and capacities Cylinder replacement is quick and easy |

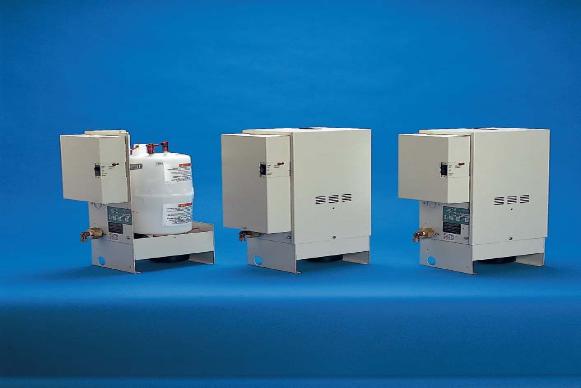

| Electrode Steam Humidifiers Modbus Communication Modbus interface board will provide monitoring and control of all critical points via Building Automation System. It is easily mounted to the main board using a ribbon cable connection. system configurations NORTEC offers a choice of product configurations in the MES Series. Units offer capacities from 5 to 30 pounds of moisture per hour from 1.7 to 10.2 kW. See technical data for compatibility details. |
Electrode Steam
specification 05 10 15 15 20 20 25 30
Capacity: lbs/hr* 2-5 2-10 3-15 3-15 4-20 4-20 5-25 6-30
Capacity: kg/hr* 0.9-2.3 0.9-4.5 1.4-6.8 1.4-6.8 1.8-9.1 1.8-9.1 2.3-11.34
2.7-13.6
Input kW max 1.79 3.4 5.1 5.1 6.8 6.8 8.5 10.2
Voltage 208/230/277
380/460/575 208/230/277
380/460/575 208/230/277
380/460/575 208/230
380/460/575 208/230/277
380/460/575 208/230
380/460/575 208/230
380/460/575 208/230
380/460/575
Phase 1 1 1 3 1 3 3 3
Cylinder 100 200 300 300 300 300 400 400
specification 05 10 15 15 20 20 25 30
Capacity: lbs/hr* 2-5 2-10 3-15 3-15 4-20 4-20 5-25 6-30
Capacity: kg/hr* 0.9-2.3 0.9-4.5 1.4-6.8 1.4-6.8 1.8-9.1 1.8-9.1 2.3-11.34
2.7-13.6
Input kW max 1.79 3.4 5.1 5.1 6.8 6.8 8.5 10.2
Voltage 208/230/277
380/460/575 208/230/277
380/460/575 208/230/277
380/460/575 208/230
380/460/575 208/230/277
380/460/575 208/230
380/460/575 208/230
380/460/575 208/230
380/460/575
Phase 1 1 1 3 1 3 3 3
Cylinder 100 200 300 300 300 300 400 400
Physical Dimensions
25-30
15-20
5-10
2-5
specification 05 10 15 20 25 30
Depth 6.6
(16.7 cm) 6.6
(16.7 cm) 8.4
(21.3 cm) 8.4
(21.3 cm) 10.5
(26.7 cm) 10.5
(26.7 cm)
Width (remote electrical) 8.6
(21.9 cm) 8.6
(21.9 cm) 10.5
(26.7 cm) 10.5
(26.7 cm) 10.5
(26.7 cm) 10.5
(26.7 cm)
Width (attached electrical) 10.7
(21.7 cm) 10.7
(21.7 cm) 12.6
(32.2 cm) 12.6
(32.2 cm) 12.6
(32.2 cm) 12.6
(32.2 cm)
Height 13.5
(34.4 cm)* 17.3
(43.9 cm) 19.4
(49.3 cm) 19.4
(49.3 cm) 21.3.4
(54.0 cm) 21.3.4
(54.0 cm)
NOTES: Dimensions reflect fully enclosed cabinets. Precise dimensions of other cabinet
configurations may vary slightly. * _For 5 lb primary voltage connection units
25-30
15-20
5-10
2-5
specification 05 10 15 20 25 30
Depth 6.6
(16.7 cm) 6.6
(16.7 cm) 8.4
(21.3 cm) 8.4
(21.3 cm) 10.5
(26.7 cm) 10.5
(26.7 cm)
Width (remote electrical) 8.6
(21.9 cm) 8.6
(21.9 cm) 10.5
(26.7 cm) 10.5
(26.7 cm) 10.5
(26.7 cm) 10.5
(26.7 cm)
Width (attached electrical) 10.7
(21.7 cm) 10.7
(21.7 cm) 12.6
(32.2 cm) 12.6
(32.2 cm) 12.6
(32.2 cm) 12.6
(32.2 cm)
Height 13.5
(34.4 cm)* 17.3
(43.9 cm) 19.4
(49.3 cm) 19.4
(49.3 cm) 21.3.4
(54.0 cm) 21.3.4
(54.0 cm)
NOTES: Dimensions reflect fully enclosed cabinets. Precise dimensions of other cabinet
configurations may vary slightly. * _For 5 lb primary voltage connection units
